EEHZL1E681P

Name: EEHZL1E681P
SKU: 323797
Price: 2.50 EUR
Availability: InStock

Free Sample

Add to Compare

Availability

Deliverable in short time

More information about samples availability can be found here: Availability

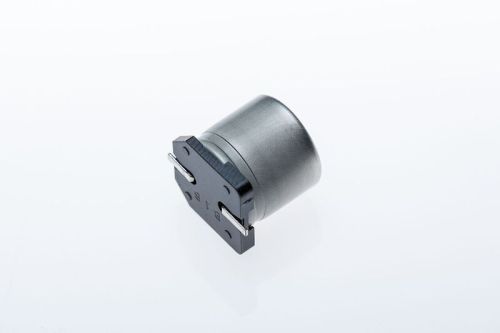

Ultra miniaturized 135°C SMD Hybrid E-Cap ZL-series

Product Code: 323797
Weight: 1.4 g
Manufacturer: PANASONIC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product Description

Detailed information

Ultra miniaturized 135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZL1E681P with 4.000h guaranteed life time, particularly low ESR and particularly high ripple current capability - AEC-Q200 certified.
Ripple current capability at 125°C: 3,400mA rms

Your technical contact person

Portrait of Roland Trimmel, Product Line Manager at CODICO.

Roland Trimmel +43 186 305-144 E-MAIL

For general questions

CODICO GmbH +43 1 86305-0 E-Mail

Manufacturer / Brand

Manufacturer: PANASONIC

Technical Product Information

Datasheet_Panasonic_ZL (pdf , 870.4 KB )

Features

More Information
Capacitance	680µF
Capacitance Tolerance	+/-20 %
Rated Ripple Current @100kHz	2300mA rms
Impedance/ESR	0,014Ω
Maximum Category Temperature	135°C
Minimale Category Temperature	-55°C
Guaranteed Lifetime	4000h
Pin Type	SMD
Diameter	10mm
Height	10,2mm
Series	ZL
Voltage Type	DC
Rated Voltage	25Vdc
