80ZLH1000MEFC18x31.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLH-series
Product Code:
226066
Weight: 12 g
Manufacturer: RUBYCON
Weight: 12 g
Manufacturer: RUBYCON
Detailed information

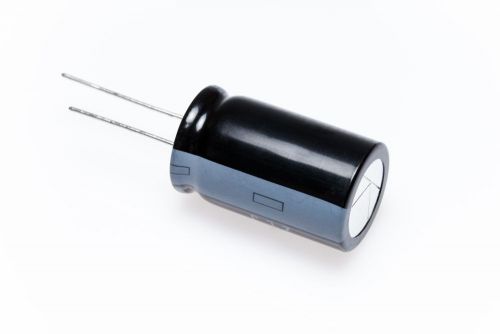

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 80ZLH1000MEFC18x31.5 with low ESR, high ripple current capability and long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 80V |
---|---|
Capacitance | 1000µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 2470mA rms |
Rated Ripple Current @120Hz | 0mA rms |
Impedance/ESR | 0,031Ω |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 10000h |
Pin Type | THT |
Pitch | 7,5mm |
Diameter | 18mm |
Height | 31,5mm |
Series | ZLH |
Voltage Type | DC |
Rated Voltage | 80Vdc |
